PLACA ADAPTADOR ETHERNET PCI-E ESPELHO ALTO 10GB HP DUAL PORT 468349-001 SEM GBIC
-
R$ 995,00
-
R$ 995,00

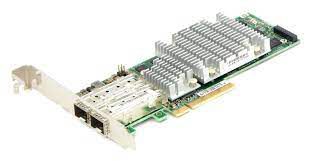

PLACA DE REDE SFP PLUS MODELO HPE NC522SFP DUAL PORT 10GBE
PERFIL ALTO APENAS - SEM TRANSCEIVERS
PRODUTO A PRONTA ENTREGA , COM GARANTIA E NOTA FISCAL DE 1 ANO EMITIMOS NOTA FISCAL PARA CNPJ OU CPF RODA EM TODA LINHA HP GERAÇÕES 5,6,7,8,9 E 10
The NC522SFP is an eight lane (x8) PCI express (PCIe) 10 Gigabit network solution offering the highest bandwidth available in a ProLiant Ethernet adapter. This PCIe Gen 2 adapter ships with two Small Form-factor Pluggable (SFP+) cages suitable for connecting to Direct Attach Cable (DAC) or fiber modules supporting SR, LR, and LRM fiber optic cabling. The NC552SFP ships with advanced server features that suits ProLiant users expectations, such as support for Transmission Control Protocol (TCP) checksum and segmentation, large send and large receive offload capability, VLAN tagging, 9K jumbo frames, IPv4 and IPv6, teaming for failover and load balancing, and TCP/IP Offload for Windows. The NC552SFP is easy to install and configure, and can be used in either standard or low profile slots.
Descrição
Modelo HP: 468332-B21
Spare part: 468349-001
Informações do fabricante:
A minimum of two gigabyte (2GB) of server memory is required per each NC522SFP adapter.
Dual-Port 10 gigabit ethernet throughput
The 20,000 Mb/s full duplex Ethernet transfer rate per port (40 Gb/s aggregate full duplex) delivers outstanding network performance that improves response time and removes bottlenecks for the next generation data center.
10 Gigabit Ethernet bandwidth is ideal for high performance computing, database clusters, iSCSI storage, storage backups, grid systems, virtualization, server and I/O consolidation, fabric consolidation, and more.
PCIe interface
HP was an early champion of PCIe bus technology and has played a key role in the development and industry adoption of the PCIe specification.
The NC522SFP is designed with an eight lane (x8) PCIe bus based on the PCIe v2.0 standard. The adapter is backward compatible with four lane (x4) PCIe automatically auto-sensing between x8 and x4 slots.
Jumbo frames
Jumbo frames (Also known as extended frames) permit a 8,000 byte transmission unit (MTU), which is five times the size of standard 1500 byte ethernet frame.
The NC522SFP adapter supports jumbo frames as a way to achieve higher throughput and better CPU utilization. Jumbo frames are particularly useful for database transfers and tape backups.
TCP stateless offloading
For overall improved system response, the NC522SFP adapter supports standard TCP/IP offloading techniques including:
TCP/IP checksum offload (TCO) moves the TCP and IP checksum offloading from the CPU to the network adapter.
Large Send Offload (LSO) or TSO allows the TCP segmentation to be handled by the adapter rather than the CPU.
Interrupt coalescing
Interrupt coalescing (Interrupt moderation) groups multiple packets, thereby reducing the number of interrupts sent to the host. This process optimizes host efficiency, leaving the CPU available for other duties.
802.1p QoS tagging
IEEE Quality of Service (QoS) 802.1p tagging allows the adapter to mark or tag frames with a priority level across a QoS-Aware network for improved traffic flow.
Management support
Like all HP ProLiant server adapters, the NC522SFP adapter ships with agents that can be managed from HP Systems Insight Manager or other management application that support SNMP.
Server integration
The NC522SFP adapter is a validated, tested, and qualified solution that is optimized for HP ProLiant servers. This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their.
The NC522SFP adapter is a validated, tested, and qualified solution that is optimized for HP ProLiant servers. This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their network adapters.
LED indicators
Bracket LED indicators show link integrity and network activity for easy troubleshooting.
Server support
ProLiant DL (Rack-Optimized):
HP ProLiant DL160 G5
HP ProLiant DL160 G5p
HP ProLiant DL160 G6
HP ProLiant DL160se G6
HP ProLiant DL165 G5
HP ProLiant DL165 G5p
HP ProLiant DL165 G6
HP ProLiant DL165 G7
HP ProLiant DL170h G6
HP ProLiant DL180 G5
HP ProLiant DL180 G6
HP ProLiant DL185 G5
HP ProLiant DL320 G6
HP ProLiant DL360 G5
HP ProLiant DL360 G6
HP ProLiant DL360 G7
HP ProLiant DL365 G5
HP ProLiant DL370 G6
HP ProLiant DL380 G5
HP ProLiant DL380 G6
HP ProLiant DL380 G7
HP ProLiant DL385 G5p
HP ProLiant DL385 G6
HP ProLiant DL385 G7
HP ProLiant DL580 G5
HP ProLiant DL580 G7
HP ProLiant DL585 G5
HP ProLiant DL585 G6
HP ProLiant DL585 G7
HP ProLiant DL785 G5
HP ProLiant DL785 G6
HP ProLiant DL980 G7
ProLiant ML (Expansion-Optimized):
HP ProLiant ML330 G6
HP ProLiant ML350 G5
HP ProLiant ML350 G6
HP ProLiant ML370 G5
HP ProLiant ML370 G6
ProLiant SL (Scalable line):
HP ProLiant SL160z G6
HP ProLiant SL165z G6
HP ProLiant SL165z G7
HP ProLiant SL170s G6
HP ProLiant SL170z G6
HP ProLiant SL2x170z G6
HP ProLiant SL390s G7
PERFIL ALTO APENAS - SEM TRANSCEIVERS
PRODUTO A PRONTA ENTREGA , COM GARANTIA E NOTA FISCAL DE 1 ANO EMITIMOS NOTA FISCAL PARA CNPJ OU CPF RODA EM TODA LINHA HP GERAÇÕES 5,6,7,8,9 E 10
The NC522SFP is an eight lane (x8) PCI express (PCIe) 10 Gigabit network solution offering the highest bandwidth available in a ProLiant Ethernet adapter. This PCIe Gen 2 adapter ships with two Small Form-factor Pluggable (SFP+) cages suitable for connecting to Direct Attach Cable (DAC) or fiber modules supporting SR, LR, and LRM fiber optic cabling. The NC552SFP ships with advanced server features that suits ProLiant users expectations, such as support for Transmission Control Protocol (TCP) checksum and segmentation, large send and large receive offload capability, VLAN tagging, 9K jumbo frames, IPv4 and IPv6, teaming for failover and load balancing, and TCP/IP Offload for Windows. The NC552SFP is easy to install and configure, and can be used in either standard or low profile slots.
Descrição
Modelo HP: 468332-B21
Spare part: 468349-001
Informações do fabricante:
A minimum of two gigabyte (2GB) of server memory is required per each NC522SFP adapter.
Dual-Port 10 gigabit ethernet throughput
The 20,000 Mb/s full duplex Ethernet transfer rate per port (40 Gb/s aggregate full duplex) delivers outstanding network performance that improves response time and removes bottlenecks for the next generation data center.
10 Gigabit Ethernet bandwidth is ideal for high performance computing, database clusters, iSCSI storage, storage backups, grid systems, virtualization, server and I/O consolidation, fabric consolidation, and more.
PCIe interface
HP was an early champion of PCIe bus technology and has played a key role in the development and industry adoption of the PCIe specification.
The NC522SFP is designed with an eight lane (x8) PCIe bus based on the PCIe v2.0 standard. The adapter is backward compatible with four lane (x4) PCIe automatically auto-sensing between x8 and x4 slots.
Jumbo frames
Jumbo frames (Also known as extended frames) permit a 8,000 byte transmission unit (MTU), which is five times the size of standard 1500 byte ethernet frame.
The NC522SFP adapter supports jumbo frames as a way to achieve higher throughput and better CPU utilization. Jumbo frames are particularly useful for database transfers and tape backups.
TCP stateless offloading
For overall improved system response, the NC522SFP adapter supports standard TCP/IP offloading techniques including:
TCP/IP checksum offload (TCO) moves the TCP and IP checksum offloading from the CPU to the network adapter.
Large Send Offload (LSO) or TSO allows the TCP segmentation to be handled by the adapter rather than the CPU.
Interrupt coalescing
Interrupt coalescing (Interrupt moderation) groups multiple packets, thereby reducing the number of interrupts sent to the host. This process optimizes host efficiency, leaving the CPU available for other duties.
802.1p QoS tagging
IEEE Quality of Service (QoS) 802.1p tagging allows the adapter to mark or tag frames with a priority level across a QoS-Aware network for improved traffic flow.
Management support
Like all HP ProLiant server adapters, the NC522SFP adapter ships with agents that can be managed from HP Systems Insight Manager or other management application that support SNMP.
Server integration
The NC522SFP adapter is a validated, tested, and qualified solution that is optimized for HP ProLiant servers. This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their.
The NC522SFP adapter is a validated, tested, and qualified solution that is optimized for HP ProLiant servers. This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their network adapters.
LED indicators
Bracket LED indicators show link integrity and network activity for easy troubleshooting.
Server support
ProLiant DL (Rack-Optimized):
HP ProLiant DL160 G5
HP ProLiant DL160 G5p
HP ProLiant DL160 G6
HP ProLiant DL160se G6
HP ProLiant DL165 G5
HP ProLiant DL165 G5p
HP ProLiant DL165 G6
HP ProLiant DL165 G7
HP ProLiant DL170h G6
HP ProLiant DL180 G5
HP ProLiant DL180 G6
HP ProLiant DL185 G5
HP ProLiant DL320 G6
HP ProLiant DL360 G5
HP ProLiant DL360 G6
HP ProLiant DL360 G7
HP ProLiant DL365 G5
HP ProLiant DL370 G6
HP ProLiant DL380 G5
HP ProLiant DL380 G6
HP ProLiant DL380 G7
HP ProLiant DL385 G5p
HP ProLiant DL385 G6
HP ProLiant DL385 G7
HP ProLiant DL580 G5
HP ProLiant DL580 G7
HP ProLiant DL585 G5
HP ProLiant DL585 G6
HP ProLiant DL585 G7
HP ProLiant DL785 G5
HP ProLiant DL785 G6
HP ProLiant DL980 G7
ProLiant ML (Expansion-Optimized):
HP ProLiant ML330 G6
HP ProLiant ML350 G5
HP ProLiant ML350 G6
HP ProLiant ML370 G5
HP ProLiant ML370 G6
ProLiant SL (Scalable line):
HP ProLiant SL160z G6
HP ProLiant SL165z G6
HP ProLiant SL165z G7
HP ProLiant SL170s G6
HP ProLiant SL170z G6
HP ProLiant SL2x170z G6
HP ProLiant SL390s G7
